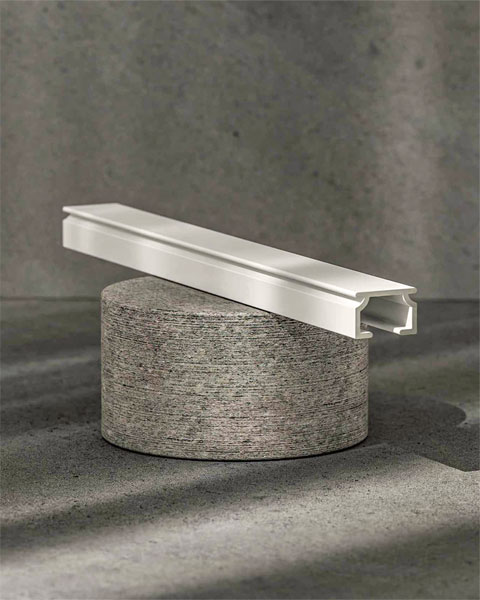

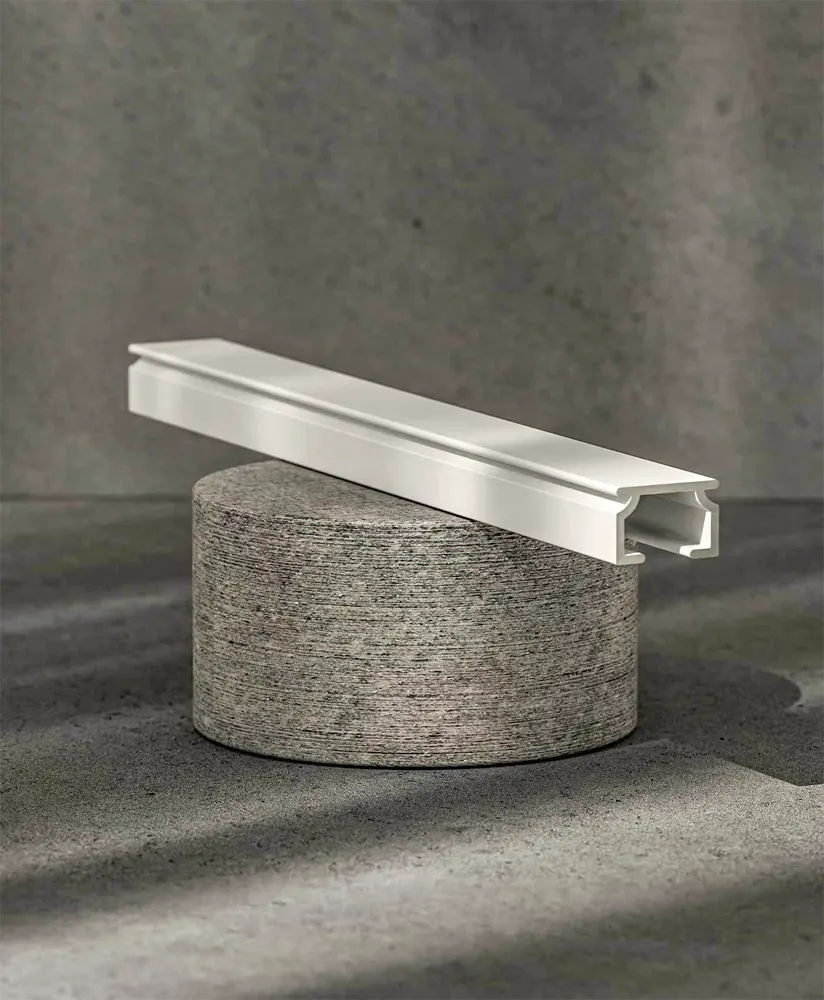

Hand-Drawn Lightweight Drapery Track - AP 0520/0521
The AP 0520 is a lightweight, hand-drawn drapery track distinguished by its clean, wide profile, making it one of our most popular track options. Its counterpart, the AP 0521, features the same profile with pre-drilled holes positioned every 50 cm for direct mounting and can accommodate custom pull-cord operation for added convenience.
The AP 0520 is produced using aluminum made with post-consumer recycled scrap, supporting a more resource-conscious approach to production. The AP 0521 is produced with conventional aluminum.
- Ceiling, Suspended and Wall Mounts available.
- Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
Hand or Cord Drawn Light Weight Drapery Track.
External Dimensions: 15.00 x 10.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 9 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: If track is bent or curved, the weight allowance is reduced 50%. Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
