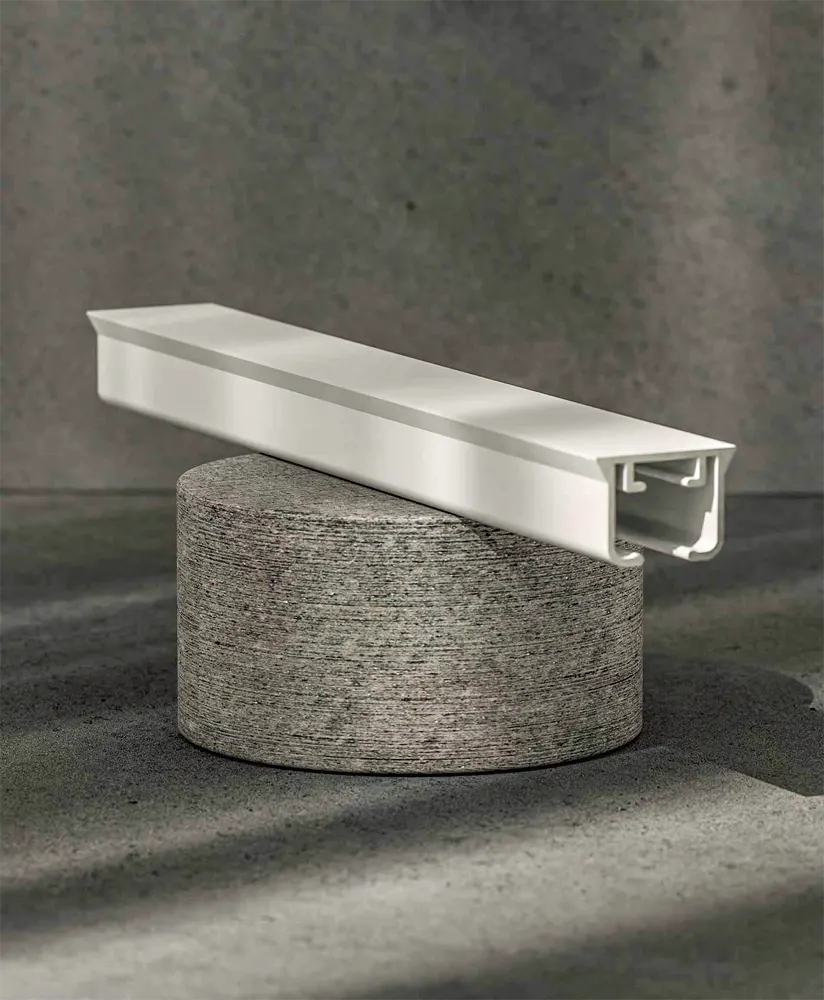

Hand-Drawn Medium-Weight Drapery Track with LED - AP 1170
The AP 1170 is a medium-weight drapery track designed to incorporate built-in LED lighting directly into its architectural profile. The integrated lighting adds another design dimension to the window treatment, making the track particularly well suited for hospitality and other professionally designed interiors.
The AP 1170 is produced using aluminum made with post-consumer recycled scrap, supporting a more resource-conscious approach to production while maintaining the quality and performance required for professional drapery installations.
- Ceiling, Suspended and Wall Mounts available.
- Not Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 19.45(16.20) x 13.75h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 15 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
