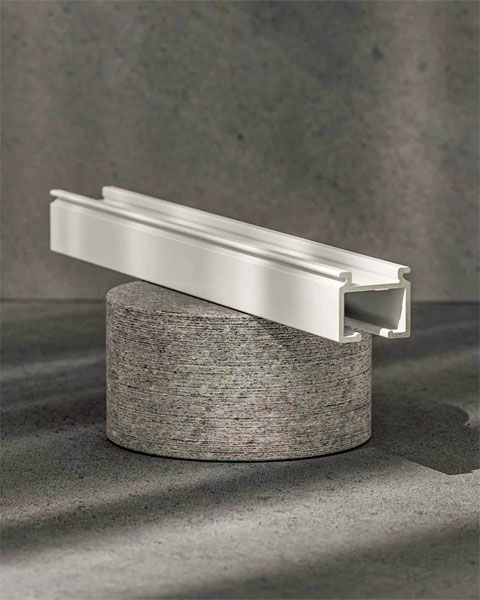

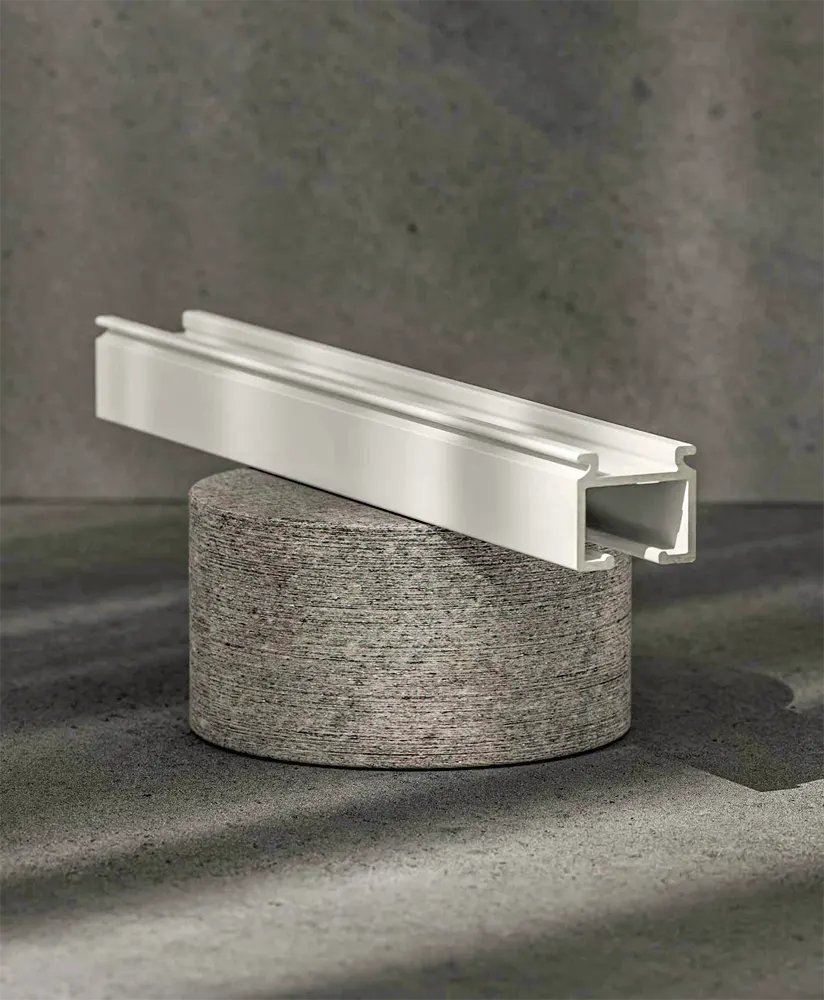

Hand-Drawn Medium-Weight Drapery Track - AP 1200
The AP 1200 is a medium-weight drapery track distinguished by its architectural profile and robust “wings,” providing the strength and clean appearance well suited for professional installations.
The AP 1200 is produced using aluminum made with post-consumer recycled scrap, supporting a more resource-conscious approach to production while maintaining the quality and performance required for professional drapery applications.
- Ceiling, Suspended and Wall Mounts available.
- Suitable for custom bends but not curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 17.40 x 15.20h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 13.5 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: If track is bent or curved, the weight allowance is reduced 50%. Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
