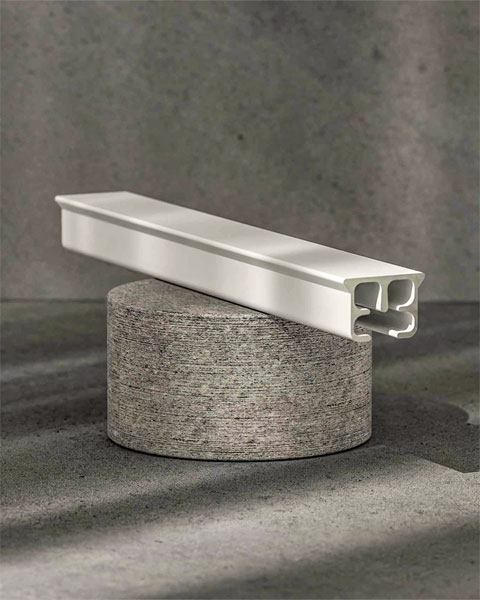

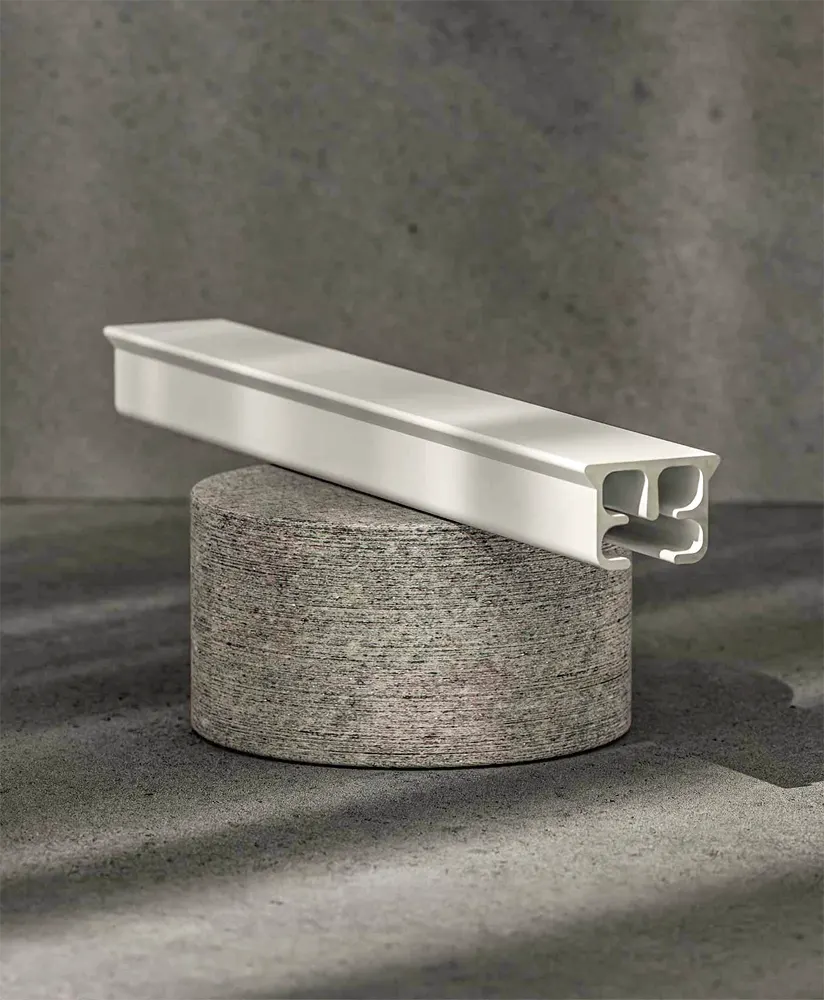

Cord-Drawn Medium-Weight Drapery Track - AP 1600
The AP 1600 is a cord-drawn, medium-weight drapery track featuring a clean, streamlined profile with sturdy “wings” for added strength. Its combination of refined appearance and reliable performance makes it a versatile solution for both residential interiors and contract applications.
A long-established track within the collection, the AP 1600 continues to be a popular choice for installations requiring smooth cord-drawn operation with medium-weight drapery. The track is produced from conventional, non-recycled aluminum alloy.
- Ceiling, Suspended and Wall Mounts available.
- Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 19.50 x 14.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 12 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: If track is bent or curved, the weight allowance is reduced 50%. Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
