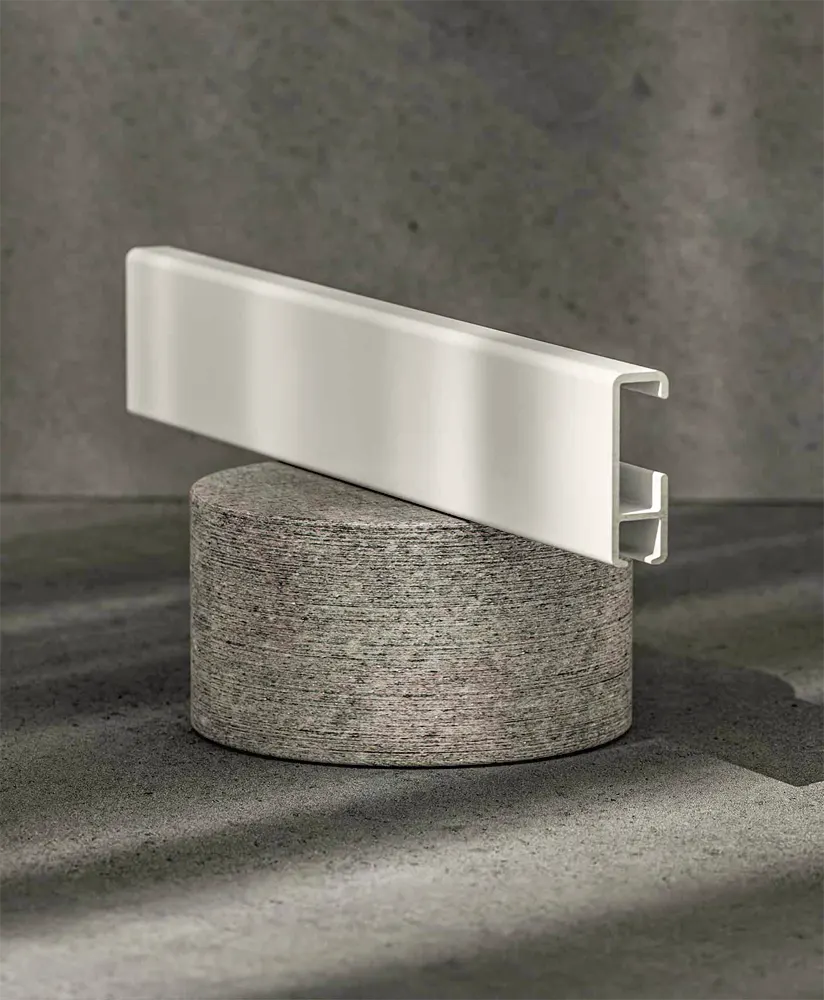

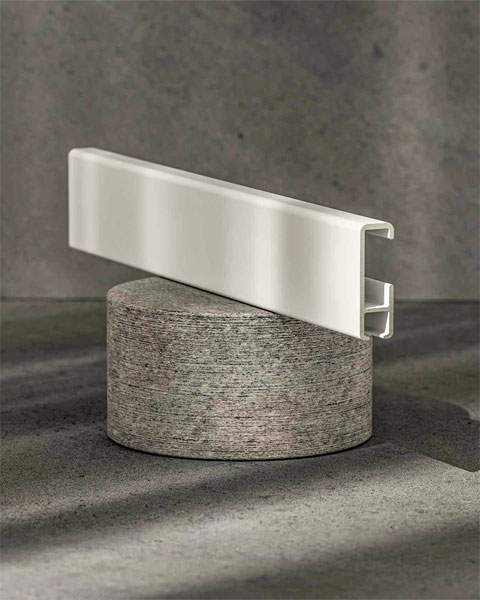

Hand-Drawn Lightweight Drapery Track - AP 2001
The AP 2001 is a contemporary classic, combining a clean architectural profile with reliable performance for lightweight drapery applications. First introduced in 1981, this enduring track has remained a trusted choice among architects, builders, designers, and residential clients for decades.
NThe AP 2001 is produced using aluminum made with post-consumer recycled scrap, supporting a more resource-conscious approach to production while maintaining the quality and performance expected of this long-established track.

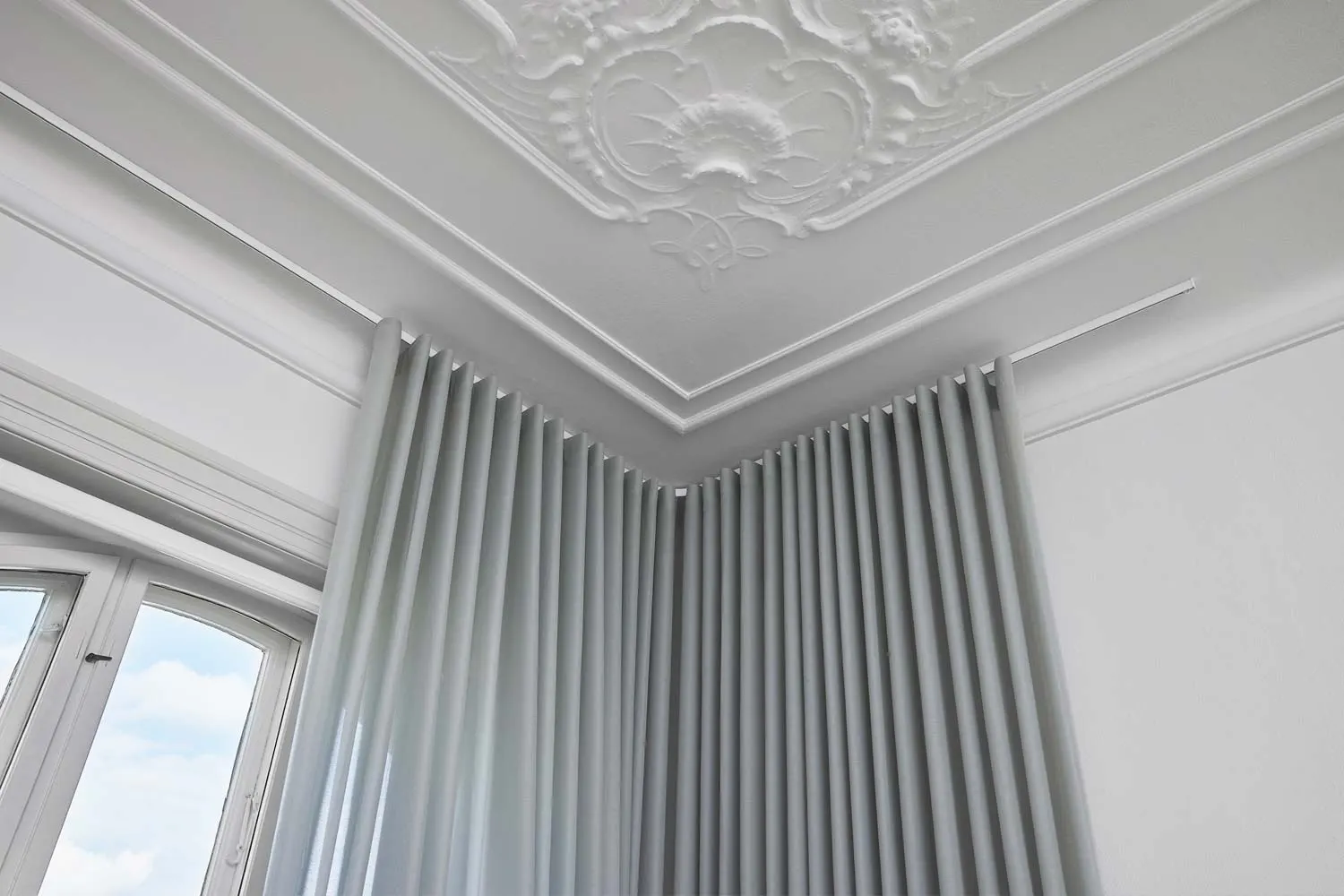

- Ceiling, Suspended and Wall Mounts available.
- Suitable for custom bends and/or curves.
- May be curved vertically for church windows.
- Ask about bulk order options.

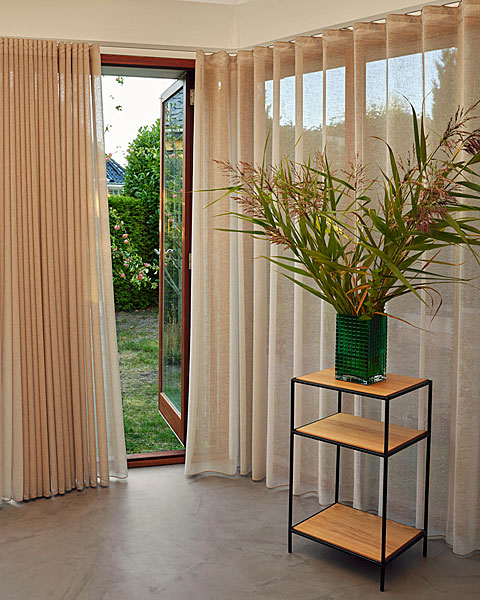

Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 8.20 x 25.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 8 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: If track is bent or curved, the weight allowance is reduced 50%. Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
