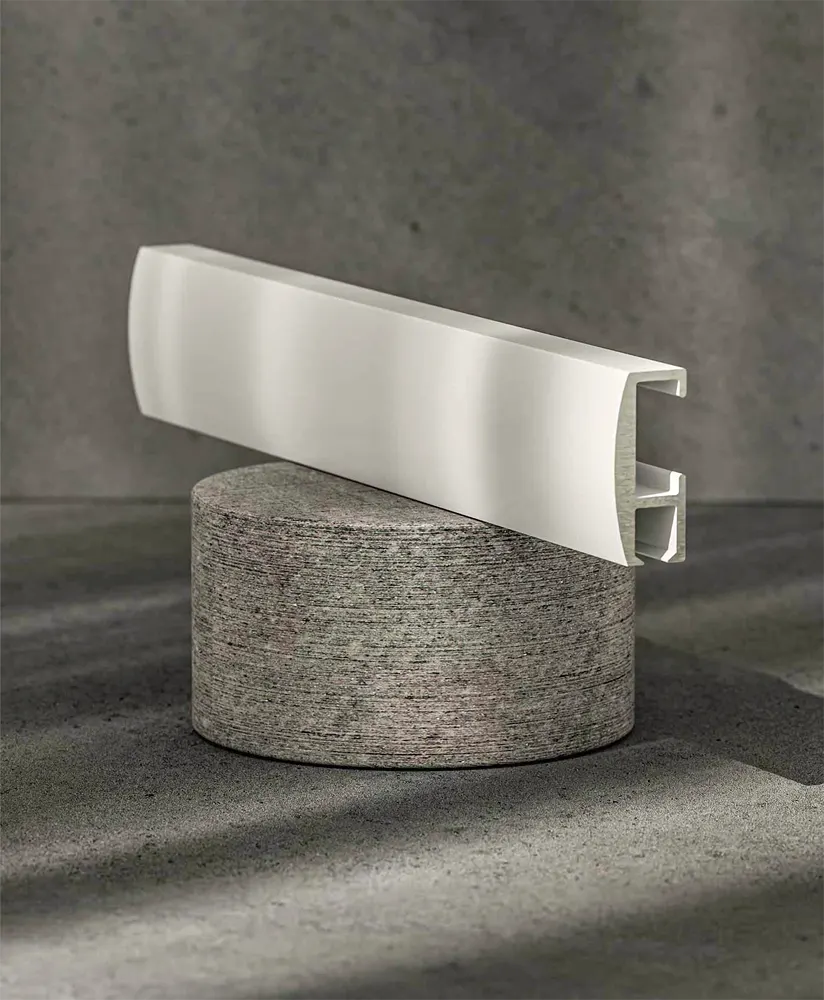

Hand-Drawn Medium-Weight Drapery Track - AP 2005
The AP 2005 is a versatile medium-weight drapery track featuring a refined curved profile and medium-high load-bearing capacity. Designed to accommodate both custom bends and curves, it offers considerable flexibility for a wide range of residential and professional drapery applications.
The AP 2005 is produced using aluminum made with post-consumer recycled scrap, supporting a more resource-conscious approach to production. Selected accessories are also made from 100% recycled nylon. For additional design flexibility, the track is available in a palette of 14 collection colors with coordinating accessories.
- Ceiling, Suspended and Wall Mounts available.
- Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 10.50 x 25.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 13 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: If track is bent or curved, the weight allowance is reduced 50%. Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
