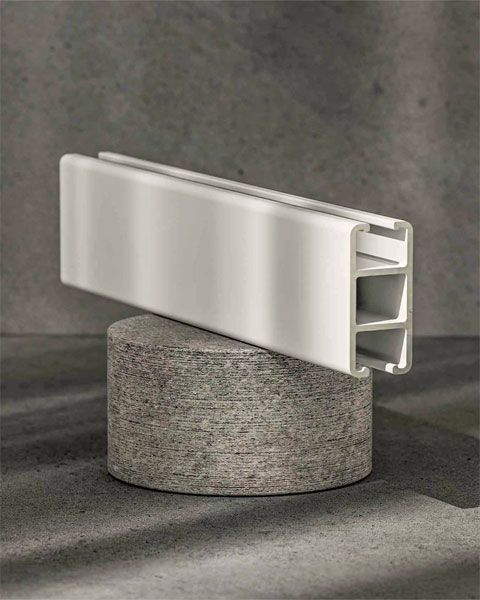

Hand-Drawn Heavyweight Cubicle Drapery Track - AP 5001
The AP 5001 is a robust, highly versatile drapery track capable of accommodating a broad range of curtain weights, from lightweight panels to heavy drapery. Its strength and adaptability make it a popular choice for room dividers, ceiling-mounted curtains, bathroom applications, and other demanding installations.
Originally developed to meet the technical requirements of hospitals and healthcare facilities, the AP 5001 is particularly well suited for cubicle tracks and other technical curtain solutions. A wide selection of mounting, bending, curving, and specialized accessory options allows the system to be configured for a variety of professional applications.
The AP 5001 is produced from conventional, non-recycled aluminum alloy. A recycled-aluminum version is available upon request.

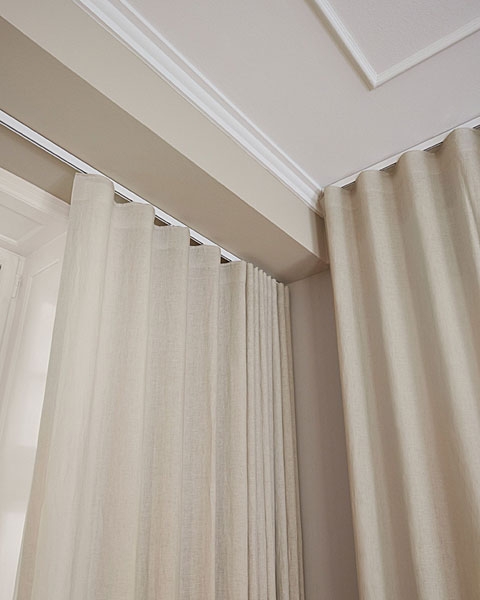

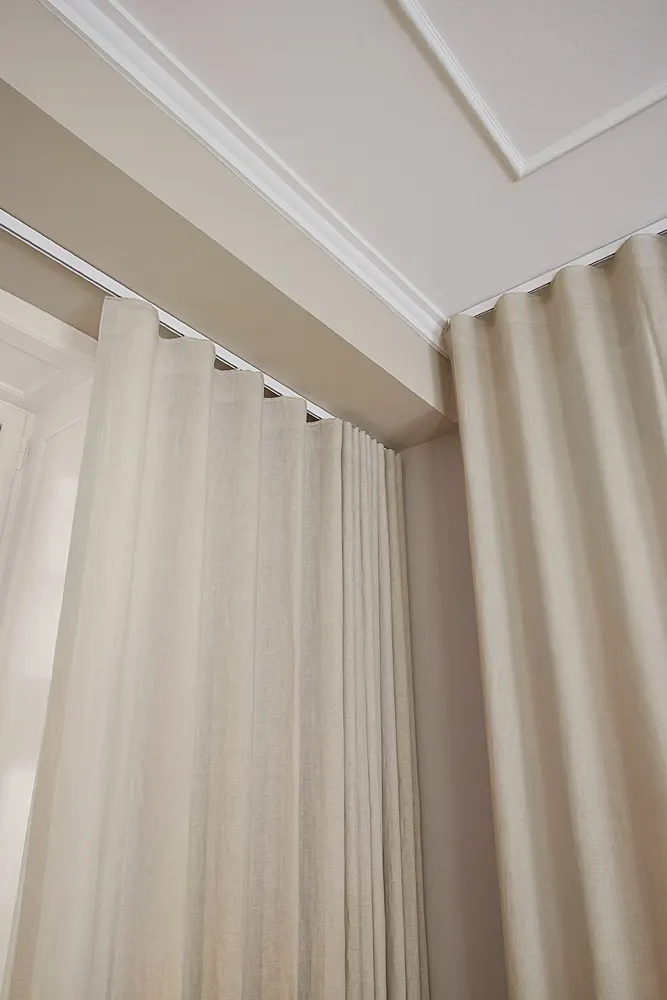

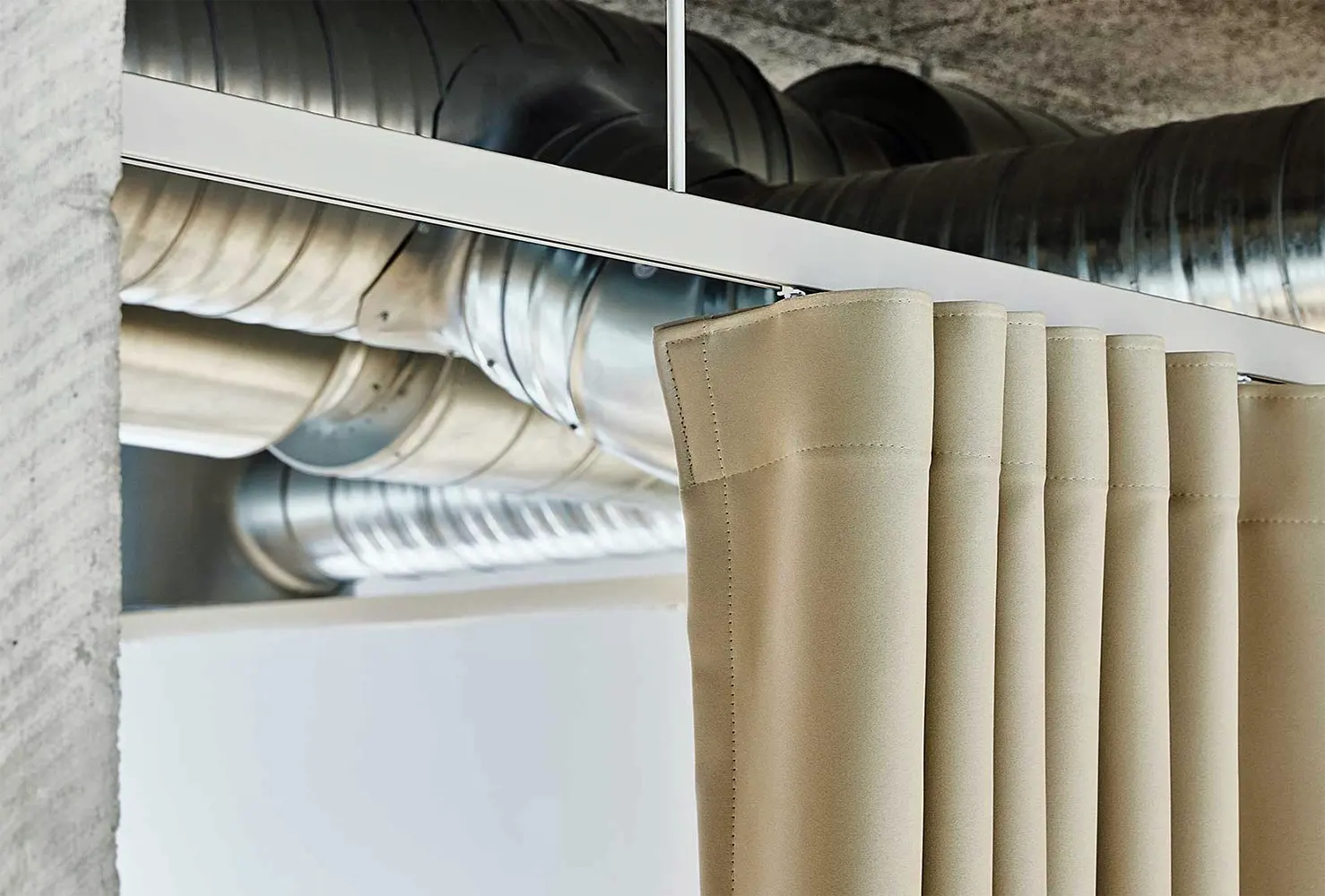

- Ceiling, Suspended and Wall Mounts available.

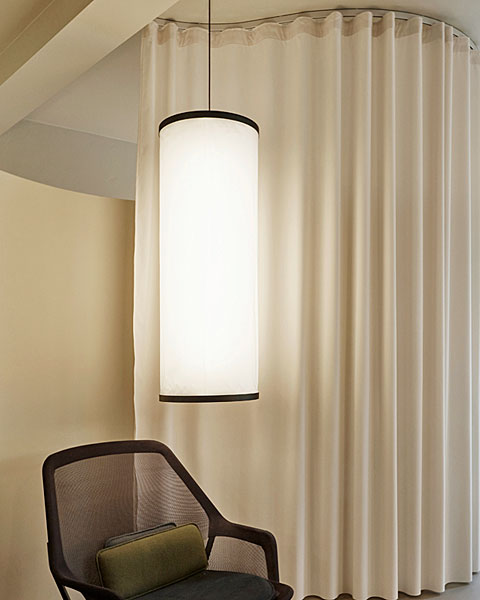

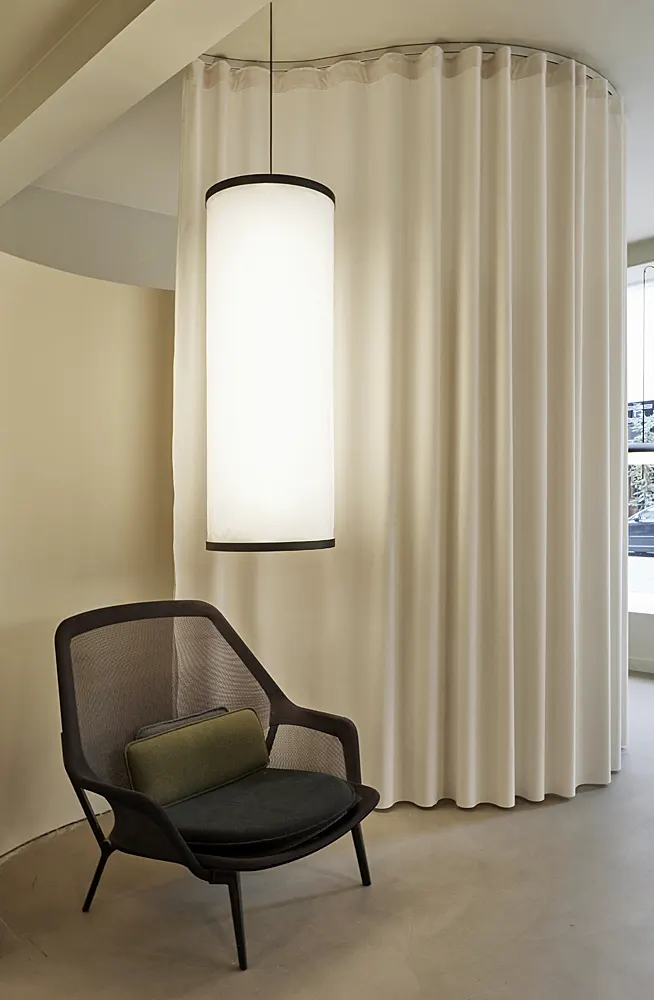

- Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 15.00 x 33.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 22.0 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: If track is bent or curved, the weight allowance is reduced 50%. Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
