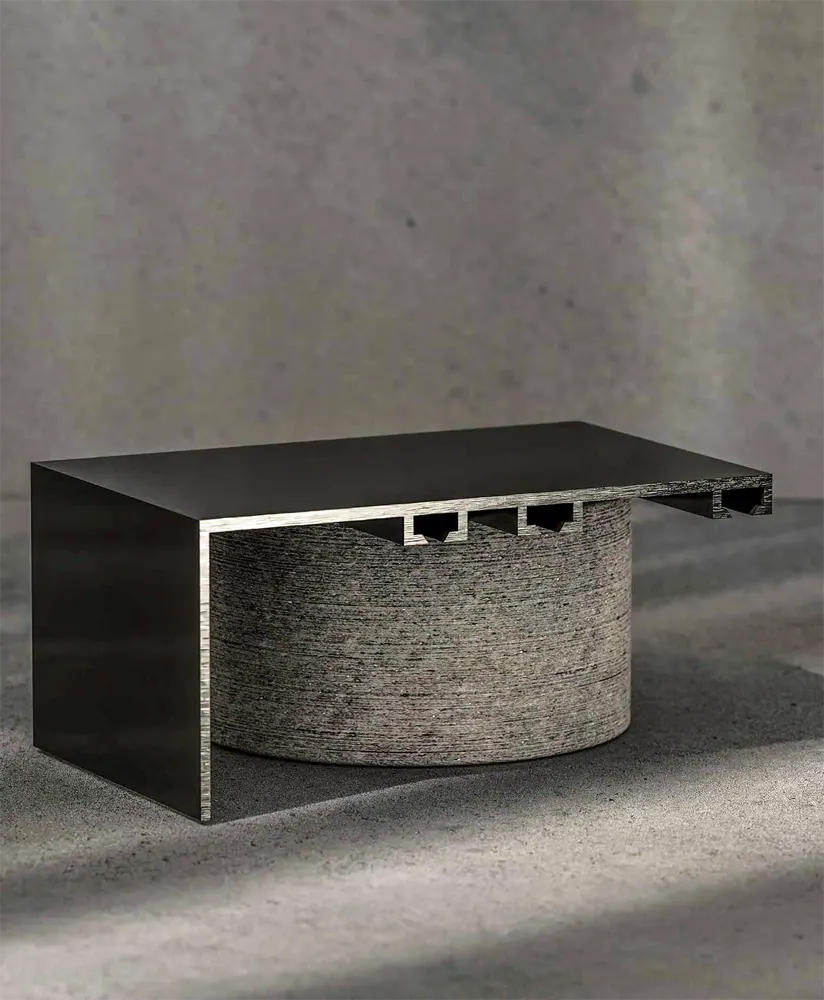

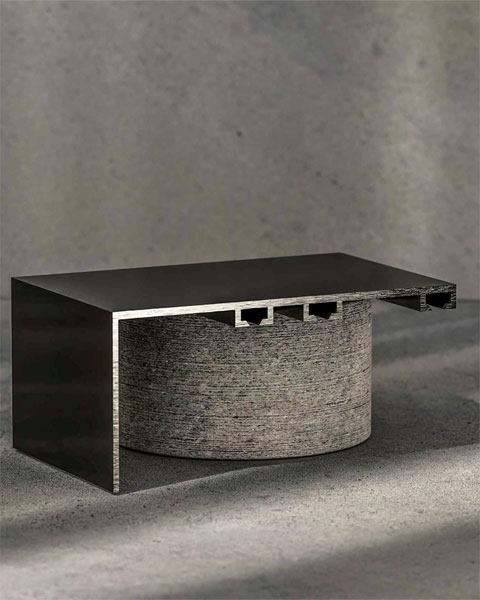

Hand-Drawn Medium-Weight 3-Channel Drapery Track - AP 5408-14
The AP 5408-14 is a medium-weight drapery track featuring three channels and an integrated 65 mm cornice, making it particularly well suited for hotel and hospitality installations. Its three-channel configuration provides one channel for sheer curtains and two channels for blackout curtains, creating a versatile solution for layered window treatments.
Designed for smooth, reliable operation, the AP 5408-14 is compatible with both heavy-duty gliders and WAVE gliders. The track is produced from conventional, non-recycled aluminum alloy.
- Ceiling mount only.
- Not Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 140.00 x 65.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 13.0 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
