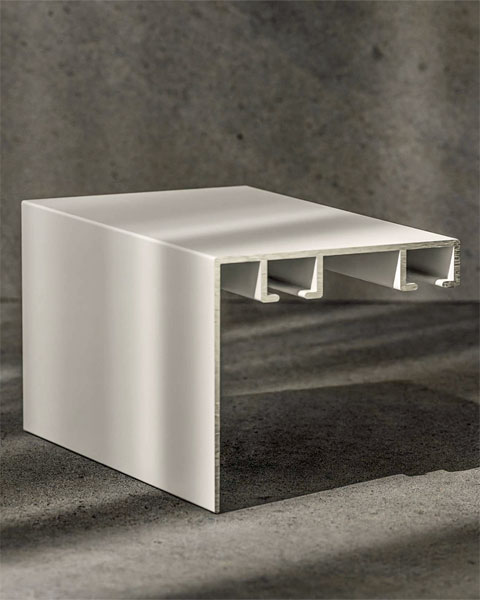

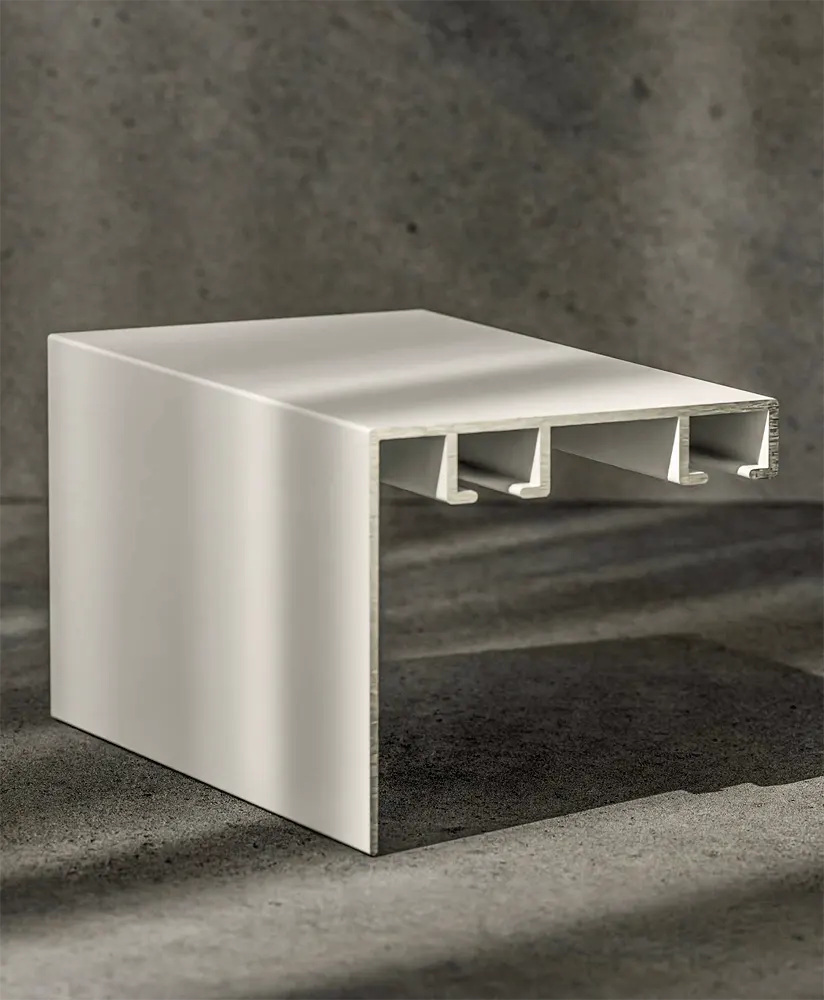

Hand-Drawn Lightweight 2-Channel Drapery Track with Valance - AP 8062-60
The AP 8062-60 is a lightweight drapery track featuring two channels and an integrated 60 mm valance. Designed with hotel and contract applications in mind, the configuration is particularly well suited for layered window treatments where effective blackout and a clean, finished appearance are priorities.
Pre-drilled holes allow the AP 8062-60 to be mounted directly to the ceiling with screws, while specialized wall brackets provide an alternative installation option. Customized end caps complete the system for a refined, coordinated finish. The track is produced from conventional, non-recycled aluminum alloy.
- Ceiling and wall mounts available.
- Not Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 55.00 x 60.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 10.0 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: Tracks may not be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
