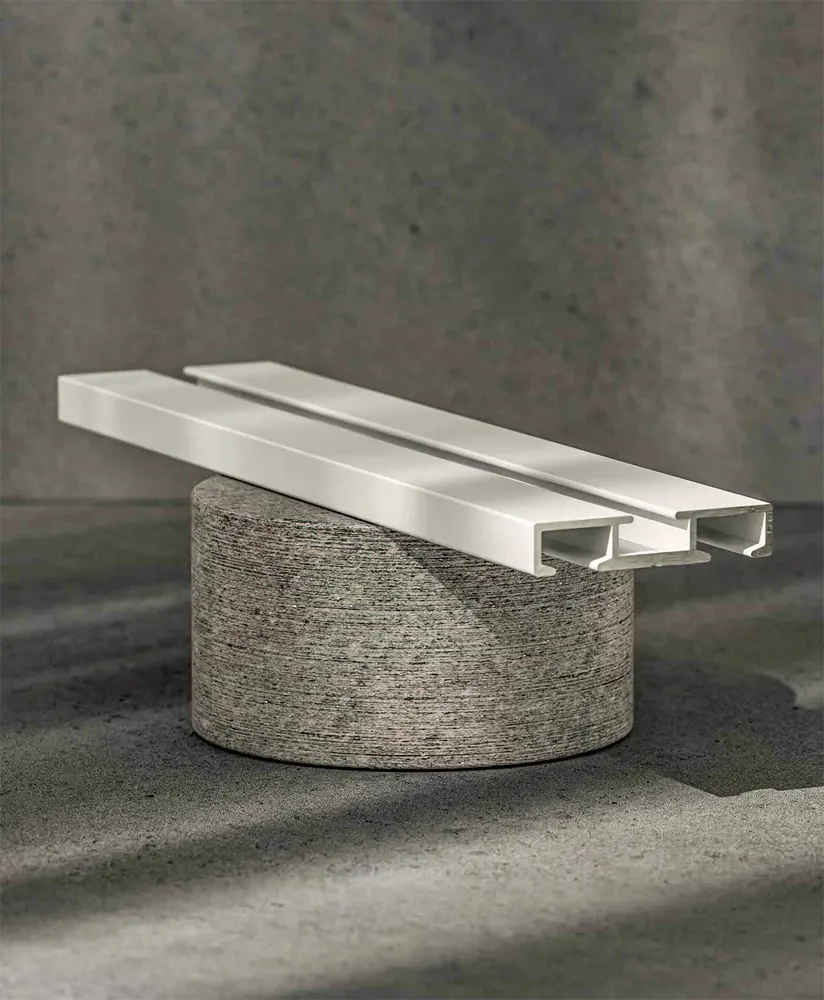

Hand-Drawn Lightweight 2-Channel Drapery Track - AP 8065
The AP 8065 is a lightweight drapery track featuring a streamlined, exceptionally slender profile with two channels for layered window treatments. Designed specifically for hotel and contract applications, the inner channel accommodates lightweight curtains while the outer channel is designed for blackout curtains, providing privacy, light control, and added insulation.
Developed as a practical and economical solution for larger-scale projects, the AP 8065 mounts directly to the ceiling with screws for a clean, straightforward installation. The track is produced from conventional, non-recycled aluminum alloy.
- Ceiling mount only.
- Not Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.
External Dimensions: 34.00 x 7.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 10.0 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: Tracks may not be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
