Hand-Drawn Heavyweight Drapery Track - AP 9001
The AP 9001 combines the decorative appearance of a traditional curtain rod with the performance and versatility of a heavyweight drapery track. Its graceful circular profile provides a refined architectural look while accommodating heavy curtains and offering the flexibility to create custom bends and curves.
A selection of decorative brackets, two finial styles, and five collection colors allows the AP 9001 to become an intentional part of the overall window treatment design rather than simply a functional track.
The AP 9001 is produced using aluminum made with post-consumer recycled scrap, supporting a more resource-conscious approach to production while maintaining the strength and performance required for heavyweight drapery applications.
- Ceiling, Suspended and Wall Mounts available.
- Suitable for custom bends and/or curves.
- Ask about bulk order options.
Gliders provided for WAVE or pleated drapery panels.

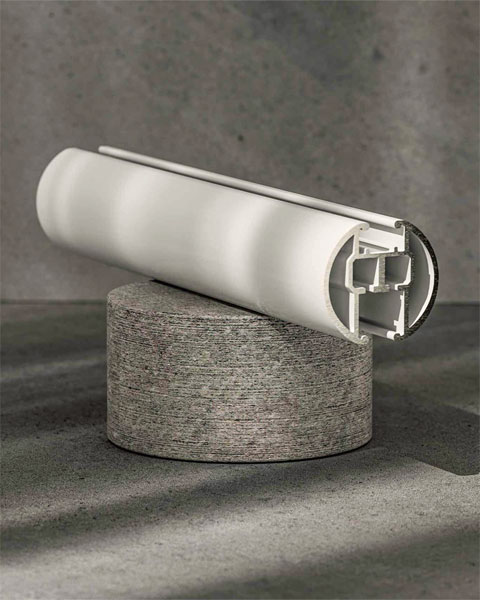

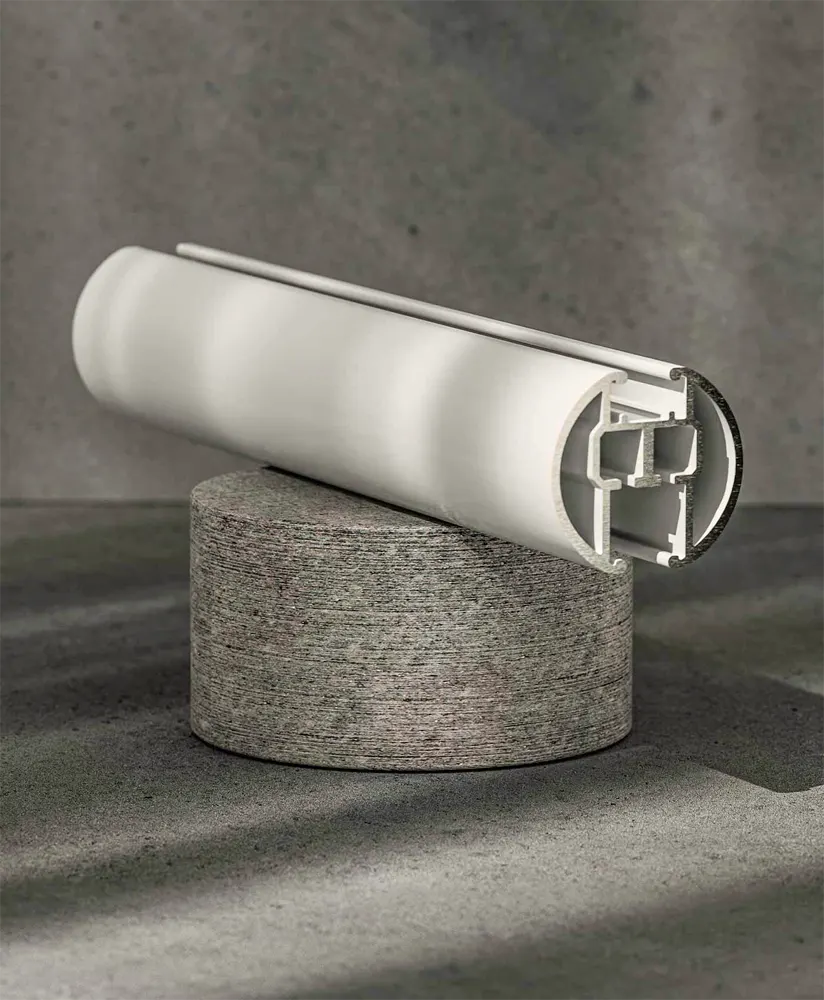

External Dimensions: 28.00 x 26.00h mm
| Max Single Length | Max Weight | Bending Radius |
|---|---|---|
| 10 - 600 cm | 16.5 kg/600cm | Min. 10 cm |
Fabric and drapery panel construction must be considered when discussing allowable weights.
NOTE: If track is bent or curved, the weight allowance is reduced 50%. Multiple tracks may be joined to mount wider installations.
Metal Finishes:
Powder coating and wet lacquering in all RAL and standard NCS colors is possible
Hover on tile for color name.
